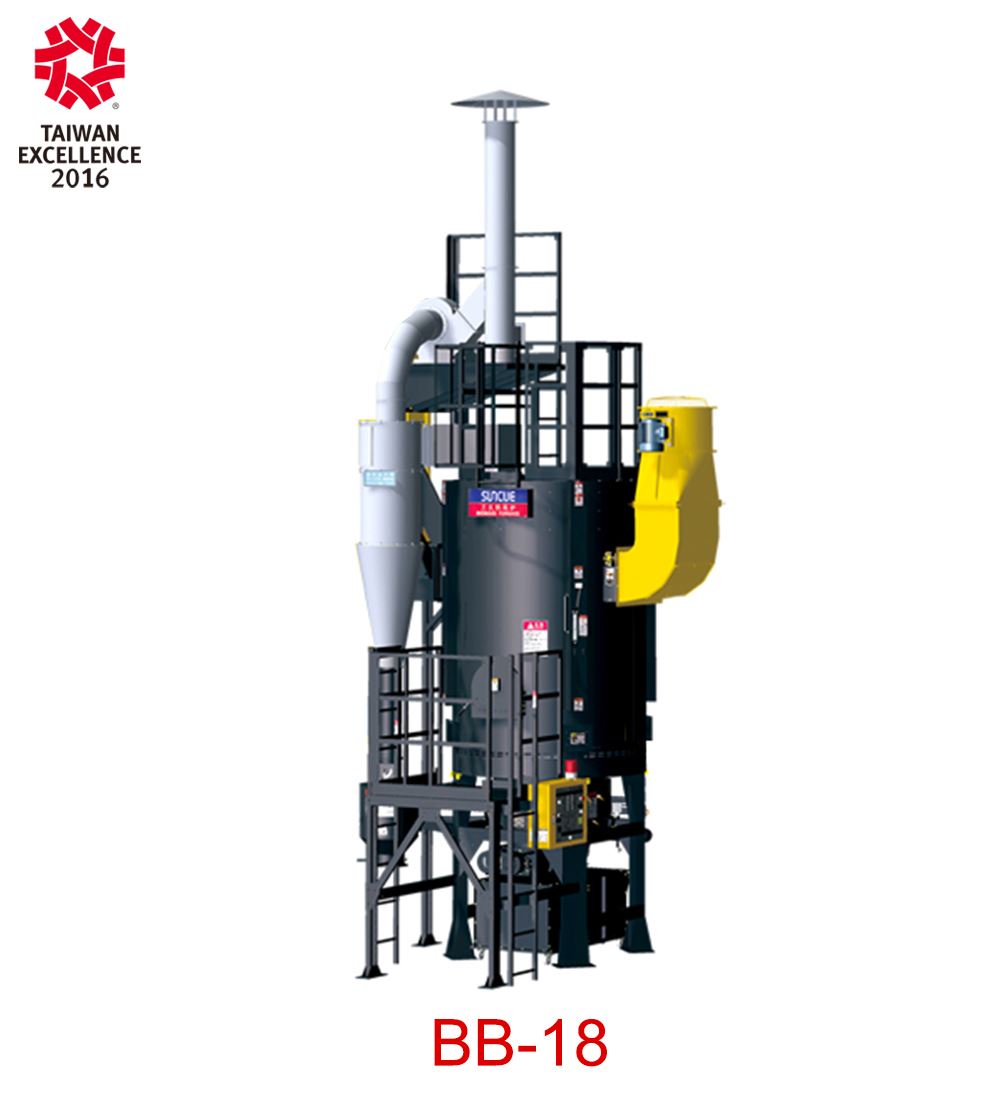

Biomass Furnace〈BB-18 Series〉
BB-18
About this product
Reduce drying costs, energy use and CO2 emission by avoiding of diesel.
Various types of biomass fuels can be used. Low drying cost and free from high oil price.
Furnace BB-18 can be connected to various dryer models.
Product Introduction
BB-18 Biomass Furnace •No Diesel needed, energy saving, reducing CO2 emission
•Reducing drying cost dramatically.
•Various types of biomass fuels can be consumed.

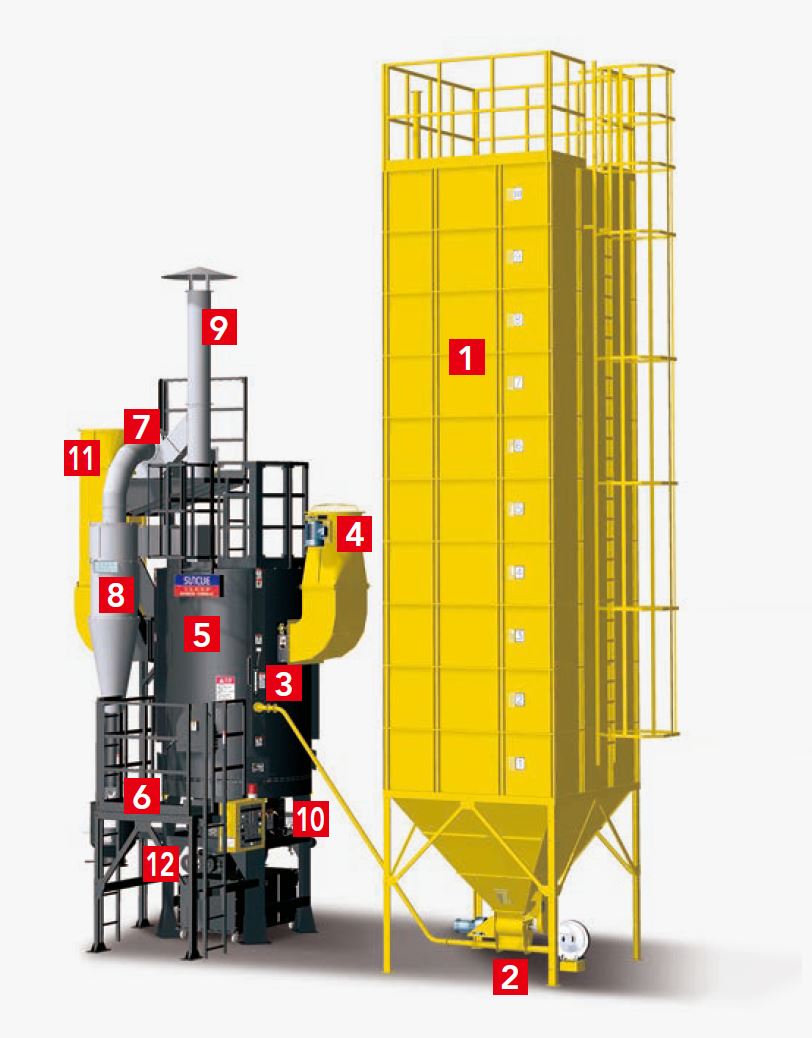

•Low drying cost and free from high oil price. •Biomass fuel:Paddy husk?Pressed straw bricks?Corn cob?Coconut shell?Wood chip?Coffee hullHigh installation flexibility. Biomass Furnace BB-18 is able to be attached to different dryer models. 1 Husk tank Optional
2 Husk feeder
Feeding volume is set manually, optional
3 Furnace pressure meter
4 Blower
5 Biomass furnace BB-18 ADF
6 Safety maintenance platform
Auto ash discharge type
7 Exhausted blower
8 Cyclone
9 Chimney
10 Auxiliary air blower
11 Hot air duct Connecting pipe
12 Automatic ash discharge system
Husk type
*An air-compressor with over 2HP is required. Air-compressor is optional upon order.
Specifications| Biomass Furnace | BB - 18 |
| Feeder system | Manual | Automatic | Automatic |
| Ash discharge system | Manual | Manual | Automatic |
| Biomass fuel | Pressed straw bricks, corn cob, wood chip, coconut shell | Coffee hull, paddy husk | Paddy husk |
| Max. thermal energy Approx. Kcal/hr | 180,000 |
| Annual diesel saving Approx. | 60,000 liter / 120 days ．136,000 liter / 270 days |
| Dimension L×W×H mm | 3,521 × 2,048 × 4,885 | 3,521 × 2,795 × 6,002 |
| Net Weight Approx. kg | 3,420 | 4,150 |
Product Remark
?The specification and graph is for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
?SUPER-300-240B, SUPER-300B is applied for drying paddy and wheat seed only.
?Max. thermal energy, husk consumption and exhausted ash production listed are for reference only. Actual data will differ upon variety, moisture content and impurity.
?Conditions of pressed straw bricks: ①Moisture content: less than 13%. ②Thermal energy: 3,700~4,200 Kcal/kg. ③Dust content: as low as possible
?Above numbers and drying rate are derived from reducing moisture in paddy from 26% to 15% ─ for reference only. Actual results vary among different ambient temperature,relative humidity, grain varieties, hot air temperature, moisture content before and after drying.
